Rpv Chart Helper application
Defining series of your chart

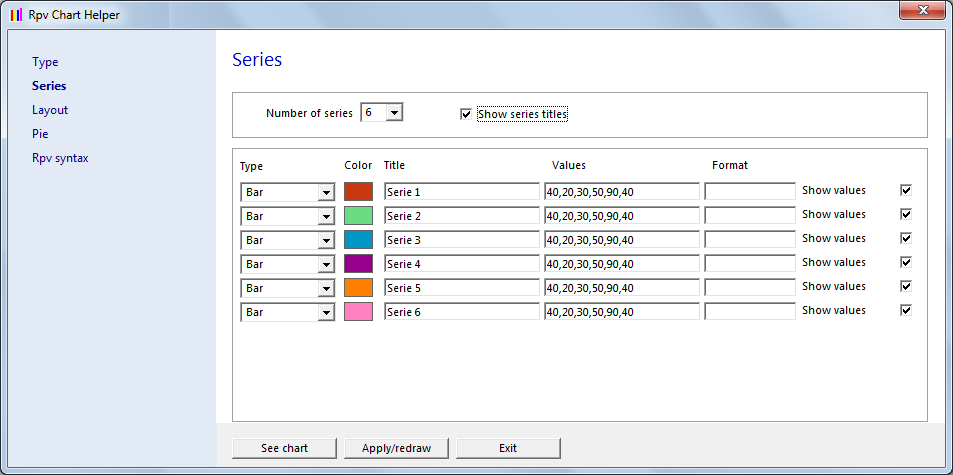

The second tab will let you define the number of series that your chart will contain and to change its properties.

Series

Define the number of series that your chart will contain by selecting a number between 1 and 8. For Pie charts, only one serie is allowed.


Show series titles

By selecting on this option, a box will appear into the image containing the references for the chart and the series titles.


Type

2D and 3D charts, it is possible to assign one different kind of chart to each serie. The posibilities are: bar, line and area.

Show values

By selecting on "show values" option, for that serie, the values will be shown on each value. It is possible to combine to show values for one serie and not for other.

Color

You can change the color of the serie by changing the values in the "color" field. Other posility is to click on "..." button to compose the color exactly the way you need.

Remember that all the colors are expressed in red, green and blue: three values from 0 to 255 separated by comma.  (0,0,0) is black and (255,255,255) is white.


Title

The "title" of the serie means the "name". Rpv Reports will size the chart automatically to fit all the texts and graphics.

Values

Type here the values of the chart. These values are only as a sample. it is supposed that the values of the chart will be prepared with real data in real time.

Anyway, you can place sample values here to see how the chart appears, and change them when you paste the script into your Rpv file.
