Rpv Chart Helper application.
Collecting the script and finishing your chart.
This is the last step to prepare a chart
with Rpv Reports..

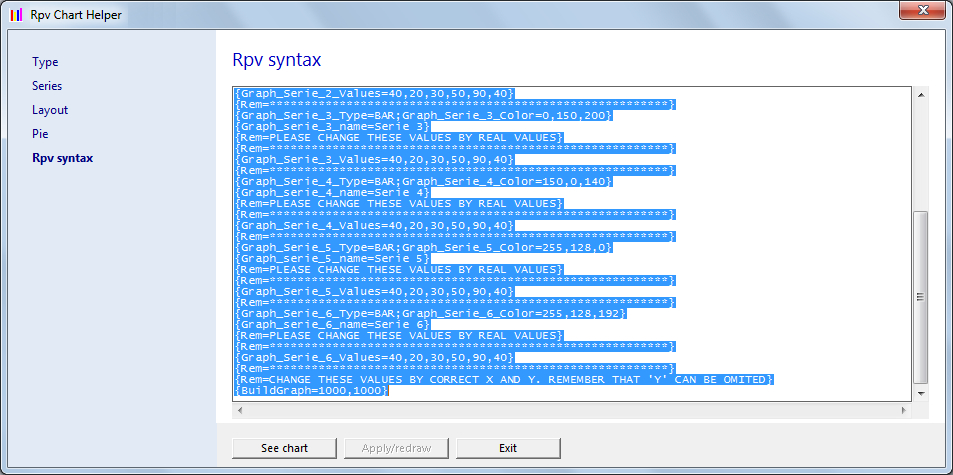

After you have selected the desired options, changed the colors and set the
parameters, just click on the fifth tab (Rpv syntax) and take the code to
prepare that chart using Rpv Reports.
You must be careful with some things
anyway, such as the values. Please remember that the helper will prepare the
same chart that you see in the sample window, but your program has to send the
real values to the chart.
Other important thing to take into account is the last "buildgraph" that
indicates 1000 for X and 1000 for Y. These values have to be changed according
the position that the chart has to have into the report.
To finish with the chart, just copy the
script to the clipboard and paste it into the Rpv file. The same chart that you
prepare will appear into the report when shown/printed.
|
